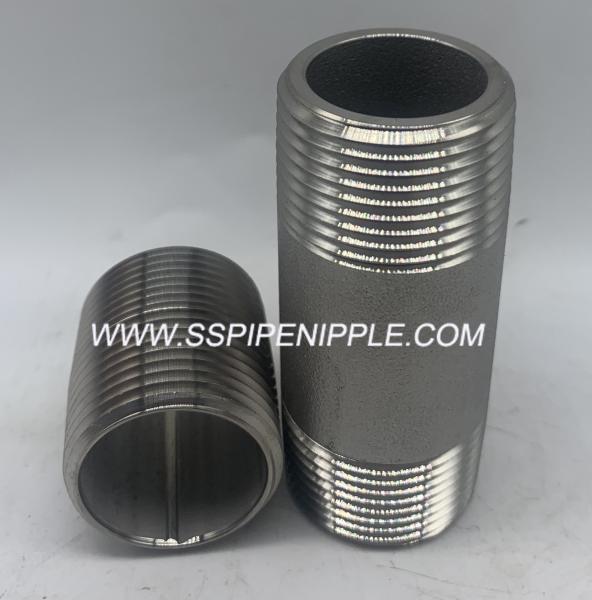

Niple Acero Inoxidable 304/316 CEDULA 40 ROSCA 1/2" X 11/2" ANSI/ASME B1.20.1.

• 304 304L /316 316L Stainless Steel
• Schedule 40 /80

• Material Test Reports (MTR’S) Available
• Stainless Steel Conforms to ASTM A312
• Dimensions & Ends Conform to ASTM A733
• Threads Conform to ASME B1.20.1
• Meets NSF / ANSI 372
• Stocked from 1/8" through 6" diameters

Tubo de acero con costura, sin costura y acero inoxidable: ASTM A-312/A-312M

DIAM INCHES	LENGTH OF CLOSE	PRICE EACH	LENGTH IN INCHES
			1½	2	2½	3	3½	4	4½	5	5½	6	7	8	9	10	11	12
	¾	13.60	17.79	21.24	24.56	27.96	31.39	34.83	38.24	41.67	45.12	48.53	56.25	63.12	69.97	76.83	83.66	90.51
¼		15.33	19.01	22.83	27.06	31.28	35.47	40.03	44.26	48.47	52.69	56.91	66.48	74.87	83.30	91.71	100.14	108.56
	1	18.43	22.38	27.07	32.24	37.37	42.55	47.68	52.86	57.98	63.14	68.33	80.28	90.59	100.89	111.18	121.52	131.81
½	1	23.77	28.67	34.35	41.16	47.94	54.76	61.76	68.59	75.39	82.16	88.99	103.82	117.43	131.01	144.62	158.20	171.79
¾	1	32.05	34.13	40.90	49.11	57.35	65.59	73.82	82.01	90.25	98.49	106.72	124.02	140.47	156.94	173.41	189.87	206.33
1	1½	42.14		52.78	62.66	73.27	83.87	94.46	105.06	115.67	126.30	136.88	160.31	181.51	202.69	223.90	245.13	266.33
1¼	1	56.63		66.71	79.02	92.47	105.91	119.35	132.78	146.21	159.63	173.07	200.68	227.56	254.42	281.29	308.14	335.02
1½	1¾	69.35		76.02	91.87	107.73	123.63	139.47	155.34	171.20	187.05	202.93	236.38	268.12	299.86	331.59	363.30	395.03
2	2	107.64			119.90	138.79	159.48	180.13	200.80	221.48	242.14	262.84	308.15	349.52	390.85	432.16	473.52	514.84
2½	2½	218.30				250.75	283.24	315.64	343.93	376.40	408.83	441.31	513.60	578.50	643.43	708.35	773.27	838.17
3	2	307.11				339.16	381.87	424.58	443.61	486.32	529.01	571.73	684.29	769.70	855.10	940.54	1,025.95	1,111.39
4	2	392.52						517.15	567.56	622.99	678.40	733.75	879.08	989.86	1,100.63	1,211.44	1,322.21	1,433.00

Cangxian Huahai Pipe Fittings CO., Ltd ,as a leading manufacturer of pipe fittings , located in famous metal fittings center ,Cangzhou City, Hebei Province China.

For more than 30 years, Huahai has worked diligently to build a strong, vibrant tradition of making connections — from pipe to pipe and people to people.

Agility and ability are what assure your future as an independent wholesaler. The agility to provide quality products and value-added services quickly, and the ability to price competitively, are the qualities needed to provide your customers with the service they expect. We can help!


Professional manufactured ability in pipeline and oil filed that win high reputation at home and abroad. Our comprehensive line of products — customized to your needs — includes:carbon steel pipe nipple ,stainless steel pipe nipple, brass and aluminum pipe nipple, swage nipple and bull plug, coupling ,grooved and plain-end fittings, bend fittings, stainless steel hex nipples, hose nipples, unions, elbow ,caps, tees, cross, plugs, bushings, valves and much more. All products meet international standards: PT, BSPT, DIN, NPT & GOST.
We believe that responsive and accessible customer support is what makes the difference between simply delivering products — and delivering solutions..

In Huahai Group, the only thing we are stubborn about is quality and value.
